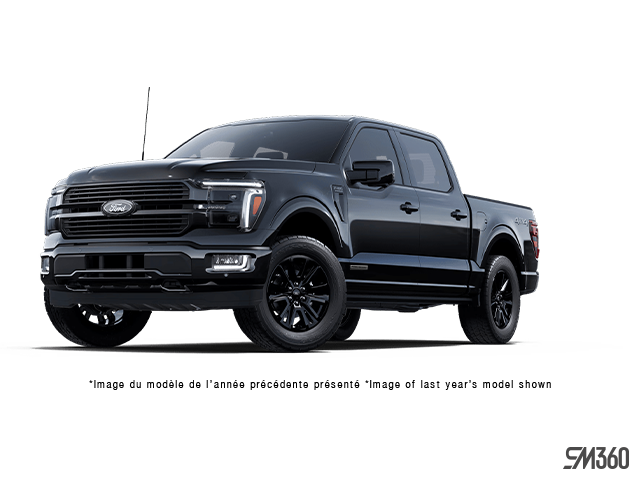

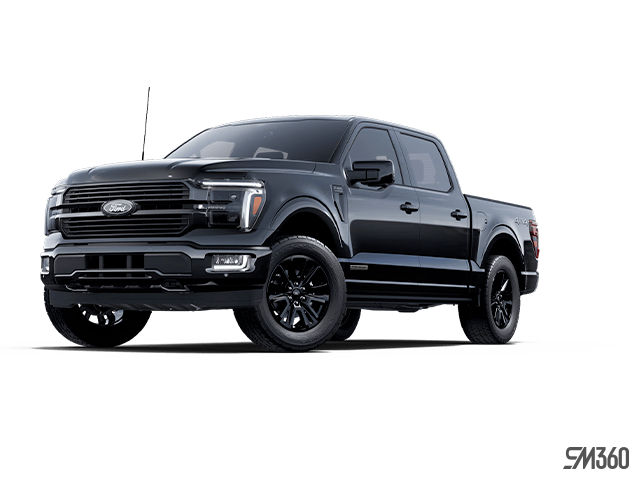

The 2026 Ford F-150 Hybrid continues to offer truck buyers a practical option for towing and hauling without sacrificing fuel efficiency. Built on the platform redesigned for 2024, this hybrid variant pairs a 3.5L PowerBoost engine with electric motor assistance to deliver 430 hp and 570 lb-ft of torque - enough muscle to handle serious work while keeping fuel consumption in check. For drivers at Mayfield Ford in Brampton who need a truck that can tow a boat to the cottage one weekend and haul materials to a job site the next, the F-150 Hybrid offers a versatile solution. This guide breaks down the towing capabilities, powertrain details, and practical considerations for the 2026 model year.
The F-150 Hybrid is available in both 4x2 and 4x4 configurations and can be ordered in SuperCrew cab with either a 5.5' or 6.5' box. Both configurations share a 115L fuel tank, which helps extend range between fill-ups when towing or hauling heavy loads.

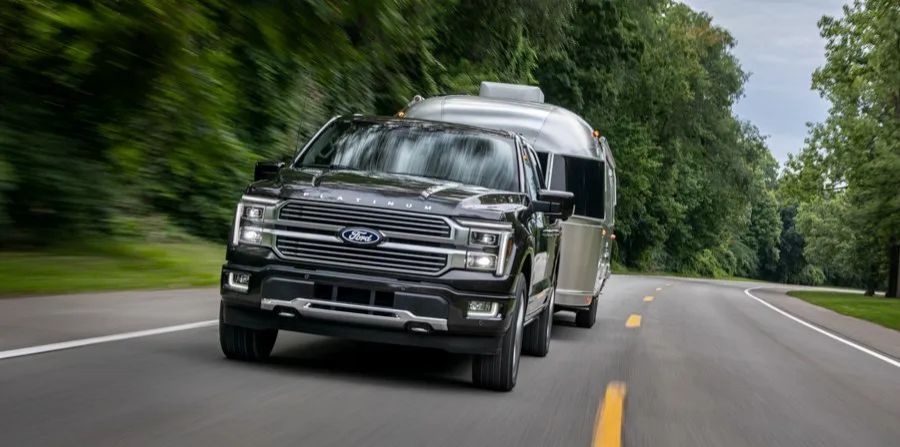

The 2026 F-150 Hybrid in 4x4 configuration is rated to tow up to 11,600 lb (5,261 kg) when properly equipped. This rating applies to both SuperCrew cab configurations - the 5.5' box and 6.5' box models. That's enough capacity to pull a 24-foot travel trailer, a dual-axle enclosed cargo trailer, or a boat and trailer combination without straining the powertrain.
Maximum payload for the Hybrid 4x4 is 1,740 lb (789 kg), which covers most bed-loading scenarios: a pallet of drywall, a load of gravel, or a full crew with tools and equipment. The hybrid system does add weight compared to the gas-only 3.5L EcoBoost, which slightly reduces payload, but the trade-off is improved fuel economy and the ability to export power directly from the truck.
|
Configuration |
Max Towing |
Max Payload |
|
Hybrid 4x4 (SuperCrew 5.5' or 6.5' Box) |
11,600 lb (5,261 kg) |
1,740 lb (789 kg) |
The F-150 Hybrid's towing capacity sits between the mid-range gas engines and the top-tier 3.5L EcoBoost V6. For most recreational and light commercial towing needs, the Hybrid's 11,600 lb (5,261 kg) rating is more than adequate.
The 3.5L PowerBoost Hybrid pairs a twin-turbocharged V6 engine with an electric motor integrated into the 10-speed automatic transmission. The result is 430 hp and 570 lb-ft of torque - the highest torque output of any F-150 engine except the supercharged Raptor R. That torque arrives low in the rev range, which makes pulling away from a stop with a trailer attached feel effortless.
The hybrid system uses a 1.5 kWh lithium-ion battery pack mounted under the rear seat. The electric motor assists during acceleration and can power the truck at low speeds, but this isn't a plug-in hybrid - the battery recharges through regenerative braking and engine operation. The system is tuned for work, not maximum electric-only range.
|
Spec |
Value |
|
Engine |
3.5L PowerBoost Hybrid V6 |
|
Horsepower |
430 hp @ 6,000 rpm |
|
Torque |
570 lb-ft @ 3,000 rpm |
|
Transmission |
10-speed automatic |
|
Drivetrain |
4x2 and 4x4 |
Fuel economy for the Hybrid 4x4 is rated at 10.4 L/100 km combined, which is notably better than the gas-only 3.5L EcoBoost at 12.1 L/100 km combined. When towing, expect fuel consumption to increase, but the hybrid system's ability to recapture energy during braking helps offset some of that penalty on routes with frequent stops or elevation changes.
The F-150 Hybrid comes standard with 2.4kW Pro Power Onboard, which provides four 120V outlets in the bed and two in the cab. This system can run power tools, lights, or a small compressor directly from the truck without needing a separate generator. For contractors or recreational users who need more capacity, an optional 7.2kW Pro Power Onboard system is available - enough to run a framing crew's tools or a mobile welding setup.
Pro Trailer Backup Assist is available and uses a knob on the dashboard to control trailer steering in reverse. Instead of turning the steering wheel in the opposite direction you want the trailer to go, you simply rotate the knob. The system handles the steering inputs. Pro Trailer Hitch Assist uses the truck's cameras to automatically align the hitch ball with the trailer coupler, which speeds up the hookup process.
The Pro Access Tailgate includes a swing door that opens 100 degrees, allowing easier access to the bed even when a trailer is attached. Onboard Scales measure payload weight in real-time using sensors in the suspension, so you can confirm you're within limits before heading out.
BlueCruise hands-free highway driving is available on Lariat and higher trims. The system works on controlled-access highways in Canada and the U.S., which can reduce driver fatigue on long towing trips.
When towing with the F-150 Hybrid, weight distribution is critical. Use a weight-distributing hitch for trailers over 5,000 lb to keep the front axle loaded and maintain steering control. Check tongue weight - it should be 10-15% of total trailer weight - and adjust load placement in the trailer if needed.
The hybrid system's regenerative braking helps slow the truck and trailer combination, but it's not a substitute for trailer brakes. Any trailer over 1,000 lb should have its own braking system, and trailers over 3,000 lb require electric brakes in Ontario.
Monitor the truck's transmission temperature gauge when towing in hilly terrain or hot weather. The 10-speed automatic includes a tow/haul mode that adjusts shift points and increases engine braking, which helps manage heat buildup on long descents.
The F-150 Hybrid's 11,600 lb (5,261 kg) towing capacity is competitive with other hybrid and gas-powered half-ton trucks. It matches the Ram 1500 eTorque's towing capacity and exceeds the Chevrolet Silverado 1500's base V8 rating. The Hybrid's 570 lb-ft of torque is higher than most gas V8s in the segment, which translates to confident acceleration when merging onto highways with a trailer in tow.
For buyers who need maximum towing capacity, the gas-only 3.5L EcoBoost V6 offers higher ratings when properly equipped. But for those who tow occasionally and want better fuel economy the rest of the time, the Hybrid delivers a practical middle ground.
Visit Mayfield Ford in Brampton to explore the Hybrid's capabilities in person. Our team can walk you through tow package options, demonstrate Pro Power Onboard, and help you configure the right truck for your work or recreation.
